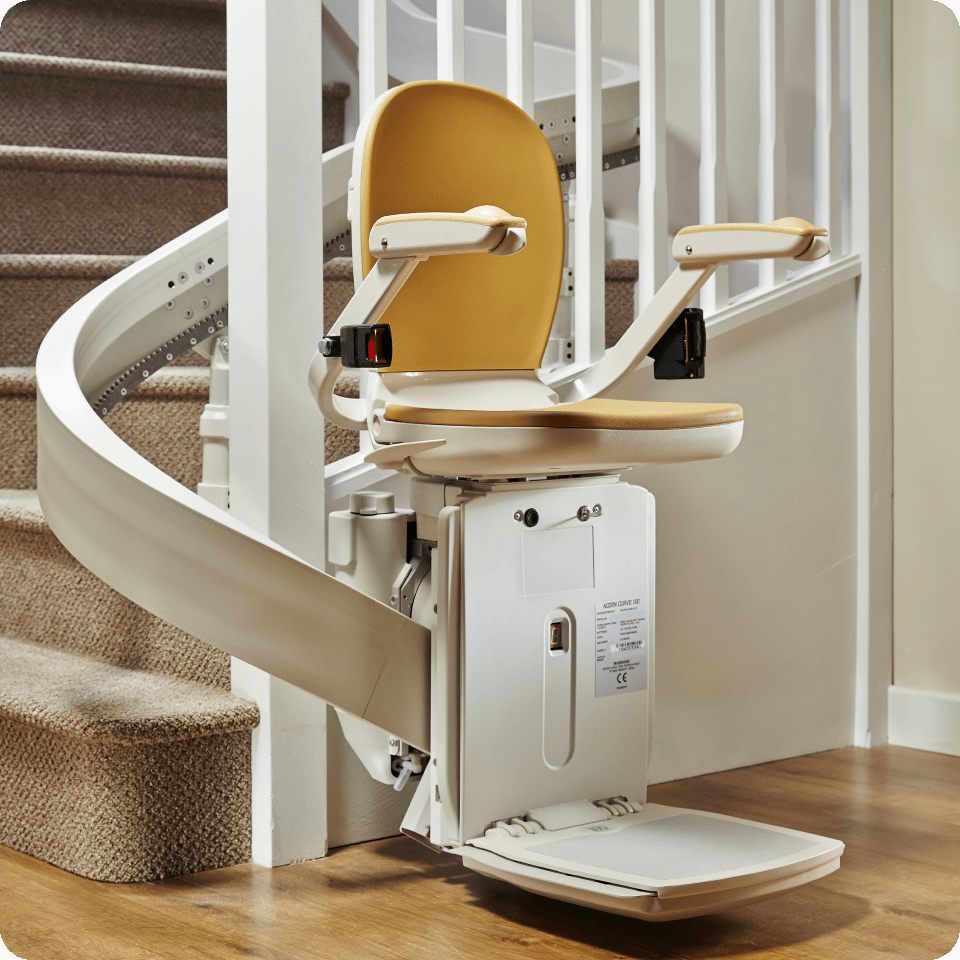

Acorn Curved Stairlift
The Acorn 180 Curved Stairlift provides a made-to-measure solution for more complex staircases which have curves or returns.
*Why do I need to fill out a form for a price?- SINGLE UNOBTRUSIVE RAIL
- UNIQUE FASTTRACK® SYSTEM
- STYLISH DESIGN
STAIRLIFTS FOR CURVED STAIRS
More complex staircases – with curves, bends or returns – require a versatile and adaptable solution. The Acorn 180 Curved Stairlift is it. Each stairlift rail is built and fine-tuned on site by Acorn’s skilled installation engineers to precisely follow the unique contours of your non-standard staircase. Unlike some rival products, Acorn’s single blank-faced stairlift rail is designed to blend well with a domestic setting, as well as being extremely strong.
REVOLUTIONARY FASTTRACK® SYSTEM
Because each curved stairlift rail is unique, customers have routinely waited weeks for their rail to be manufactured in a factory. Acorn’s patented FastTrack® modular rail system has revolutionised this process and slashed customer waiting times. It uses a parts library of prefabricated rail sections, each with a slightly different degree of bend or incline. A home survey determines which parts are needed and an Acorn engineer then assembles the interlocking rail sections on site in just a few hours to create the perfect bespoke curved stairlift rail. An Acorn 180 Curved Stairlift can be installed within days of your order, even next day if urgency is essential.
VERSATILE AND ADAPTABLE
The FastTrack® modular rail system used for the Acorn 180 Curved Stairlift makes it extremely versatile and adaptable. If another company has told you that your stairs are too unusual or ‘quirky’ for a stairlift, don’t give up until you’ve tried Acorn. Its single rail is fixed securely to the stairs, not the wall, so there’s no messy and disruptive structural work and no need to redecorate. The maximum capacity of the Acorn 180 curved is 264lbs (18.8st).
- SECURE LOCKING SAFETY BELT
- DIGITAL DIAGNOSTIC DISPLAY
- ERGONOMIC SEAT AND BACKREST
| Dimensions | inch |
|---|---|
| Overall height | 38.25 |
| Height of Seat | 17.25 |
| Overall depth (from wall) | 22.25 |
| Overall depth (when folded) | 13.25 |
| Width of footrest | 14.75 |
| Overall width | 24.5 |
| Depth of seat | 16 |
| Specifications | |
|---|---|
| Motor output speed | 120mm/s | 4.8inches per second - No greater than 0.15 meters per second |
| Method of drive | Rack and pinion |
| Power supply | 24V DC (battery) |
| Maximum capacity | 265lbs/120kg |
| Track | Modular rail, Extruded aluminium |
| Mains supply | 50-60Hz, 100-240V AC |
Price your stairlift
Find out how much your stairlift will be
The exact cost of your made-to-measure Acorn Stairlift depends on the type of staircase it will be fitted to, your mobility needs and any options or modifications you might need or choose. Following a home survey and discussion with Acorn’s stairlift expert, you will be provided with an exact quote with no hidden extras. Until then, following this simple step-by-step process will give you some idea of what to expect in terms of cost.
